Sand Blasting to Soda Blasting Retrofit Kit 3054 by TradeQuip

The TradeQuip "Made for the Trade" Soda Blasting Retrofit Kit is designed for use in conjunction with our 19, 37 and 75 Litre Mobile Sand Blasting Kits. Quick and simple to fit and use. Switching to Soda Blasting is especially suitable for removing paint without harming sheet metal, glass, or chrome Perfect for restorations in the classic car market as soda will not etch glass and will not warp or remove metalwork. Surface will be left silky smooth. Soda also leaves a rust inhibitor behind for up to six weeks.

You can also use bicarbonate soda blast media (NOT household baking soda) to remove graffiti and grime from brick, concrete, limestone, granite and other surfaces. Other uses included cleaning of delicate substrates; architectural and industrial cleaning; paint stripping; corrosion removal. Use to remove mould and mildew stains from pools, cement, brick, tile, granite, sound stucco, siding and more. Safely strip paint from aircraft aluminium, trucks, motorcycles. Bicarbonate soda also works brilliantly for fast removal of thick oils and grease from engines and floors.

Fitting Instructions
Remove the Standard Manifold (See picture in fig.1)
Use a flat head screwdriver to loosen the hose clamp on the blasting hose and pull the hose off the connector.
Unscrew the air hose form the manifold.
Unscrew the manifold from the bottom of the tank.

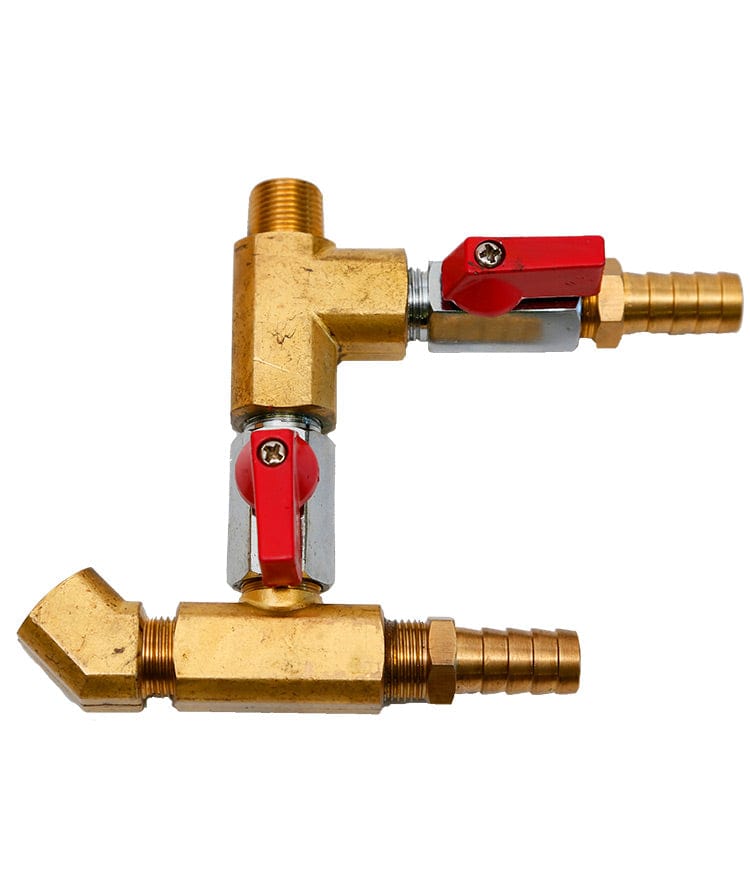

Fit Soda Blasting Manifold (See picture in fig.2)

Screw in the new manifold until tight, use a spanner, ensure the air hose connection faces the back of the tank.
Screw in the air hose and tighten with a spanner.
Push the blasting hose onto the lower connector, tighten the clamp with a flat head screwdriver.
If the exhaust hose is not connected push it onto the remaining connector.

NOTE: Use PTFE tape on threaded connection for an air tight seal.

NOTE:  We recommend the use of  personal protective equipment. Always wear a respiratory filter or mask over your mouth when operating this unit. You will create a cloud of abrasive media material and debris which should not be inhaled.
