WoodfastSKU: 8043423
Size: 400mm (16")
Sliding Table: 3.2m (Standard)
Price:
$16,162.00

Description

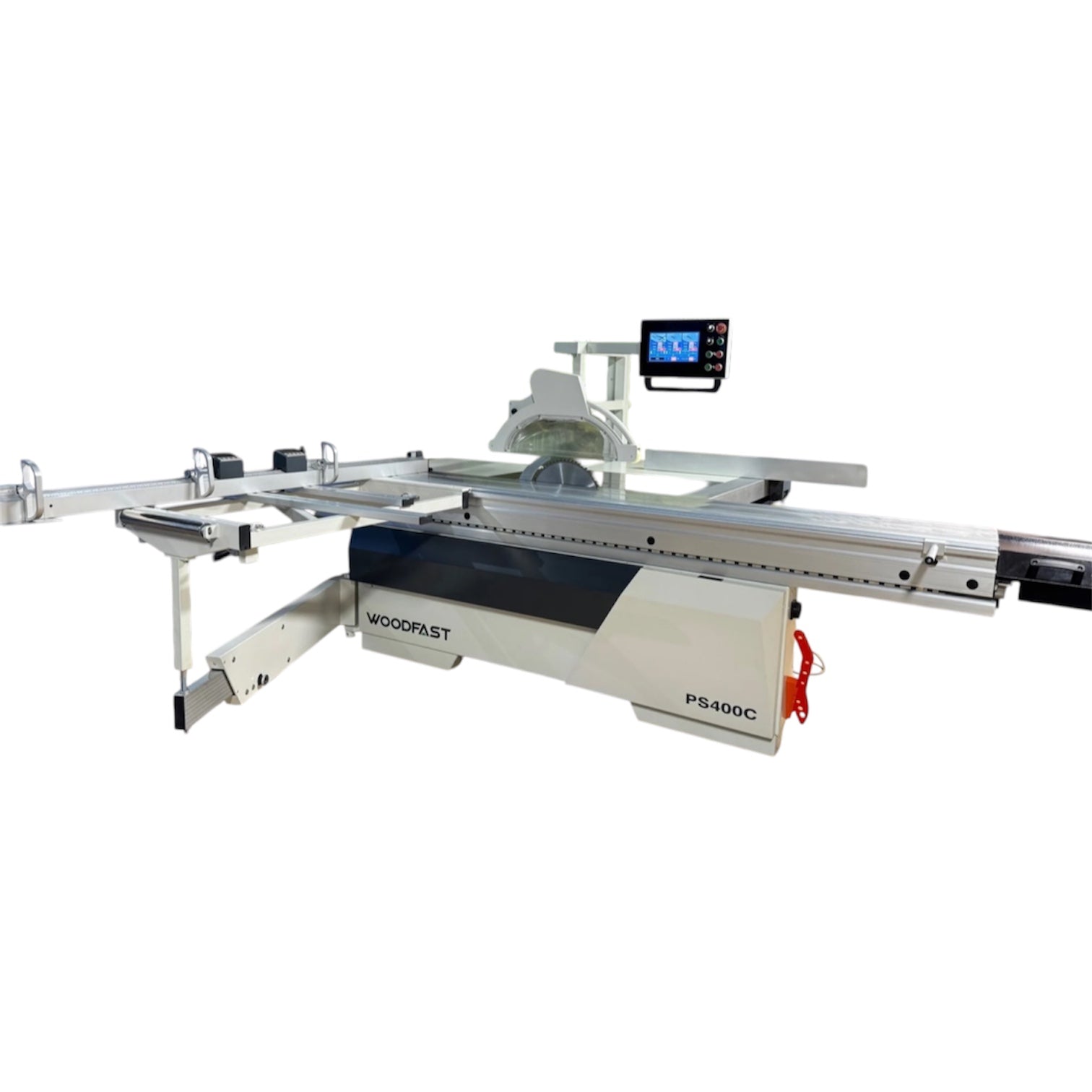

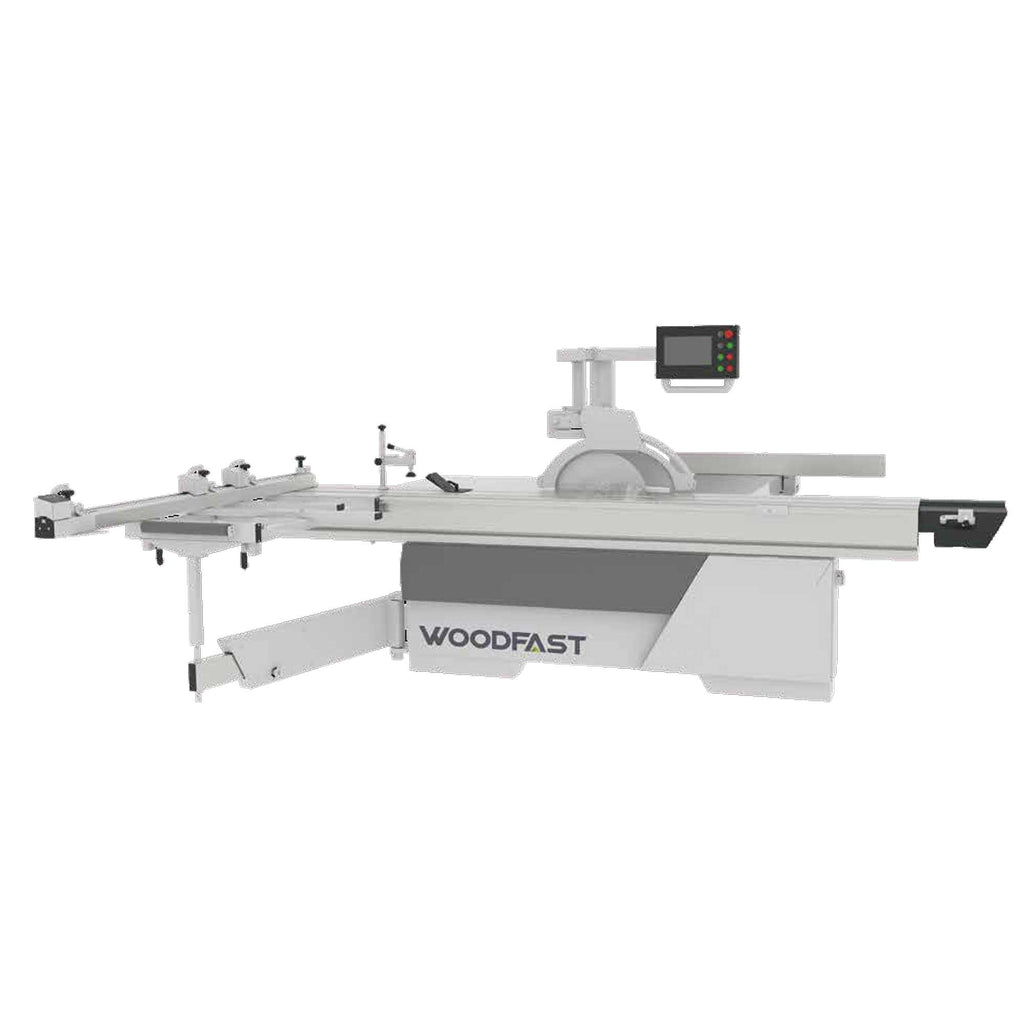

Woodfast PS400C Panel Saw – Industrial Strength Meets Smart Precision

The Woodfast PS400C is a high-performance, heavy-duty panel saw built for precision and power in demanding furniture manufacturing and woodworking environments. Featuring full electronic Rise, Fall, and Tilt of the blade and an advanced PLC-controlled rip fence system — all accessible through a user-friendly touchscreen interface — the PS400C is engineered for accuracy, stability, and ease of use. It delivers consistent, high-quality results for professional shops.

Key Features:

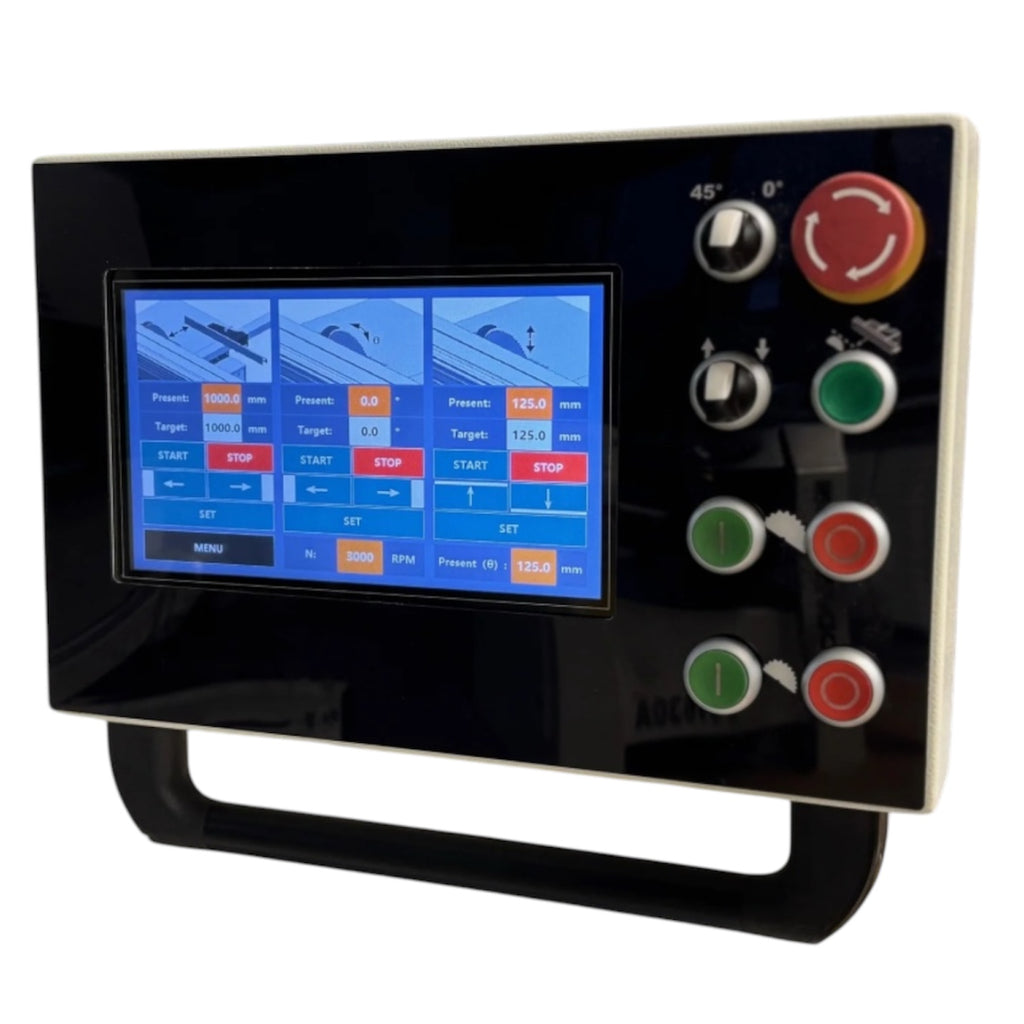

  • Touchscreen PLC Control: Intuitive touchscreen for seamless control of blade tilt, rise/fall, and rip fence adjustments.

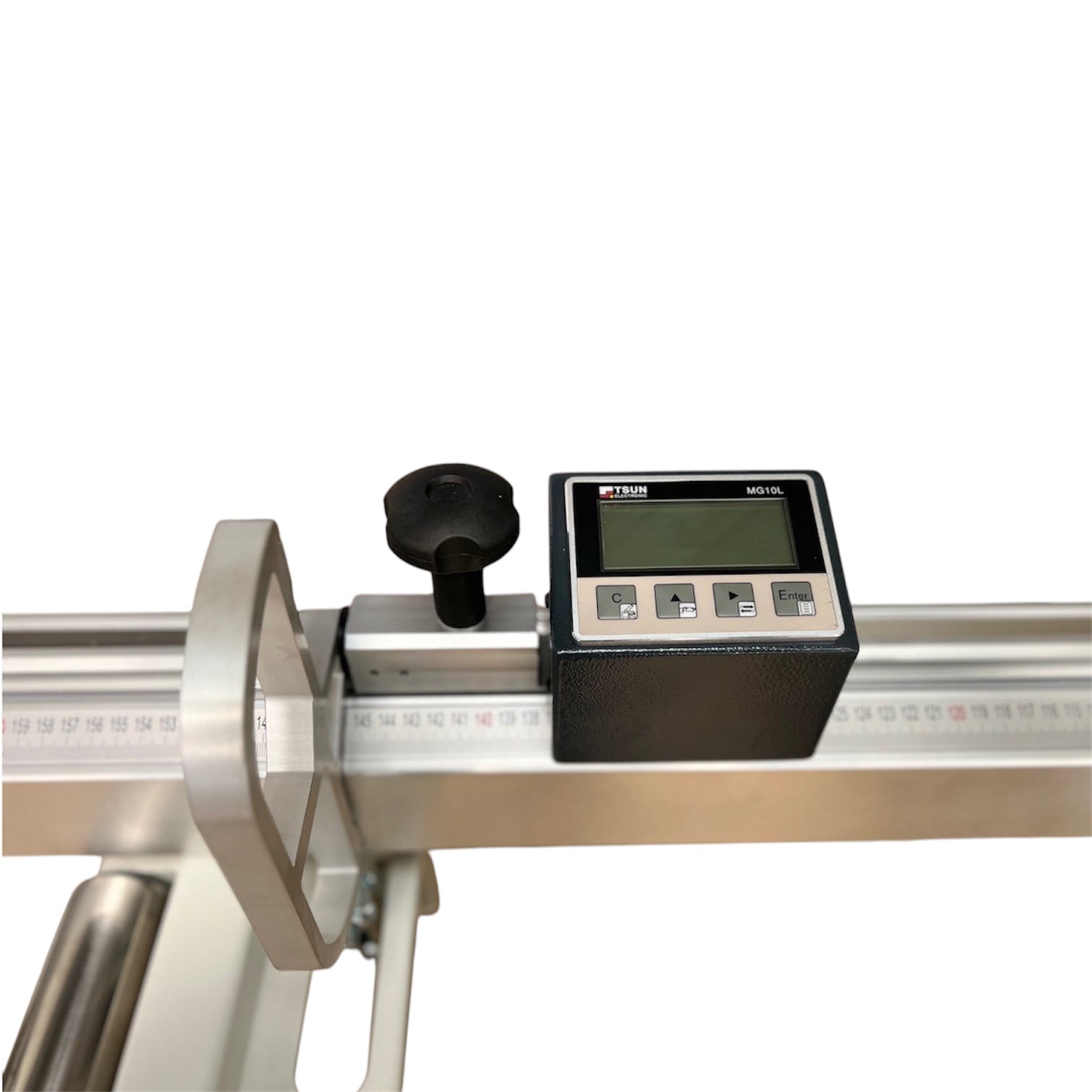

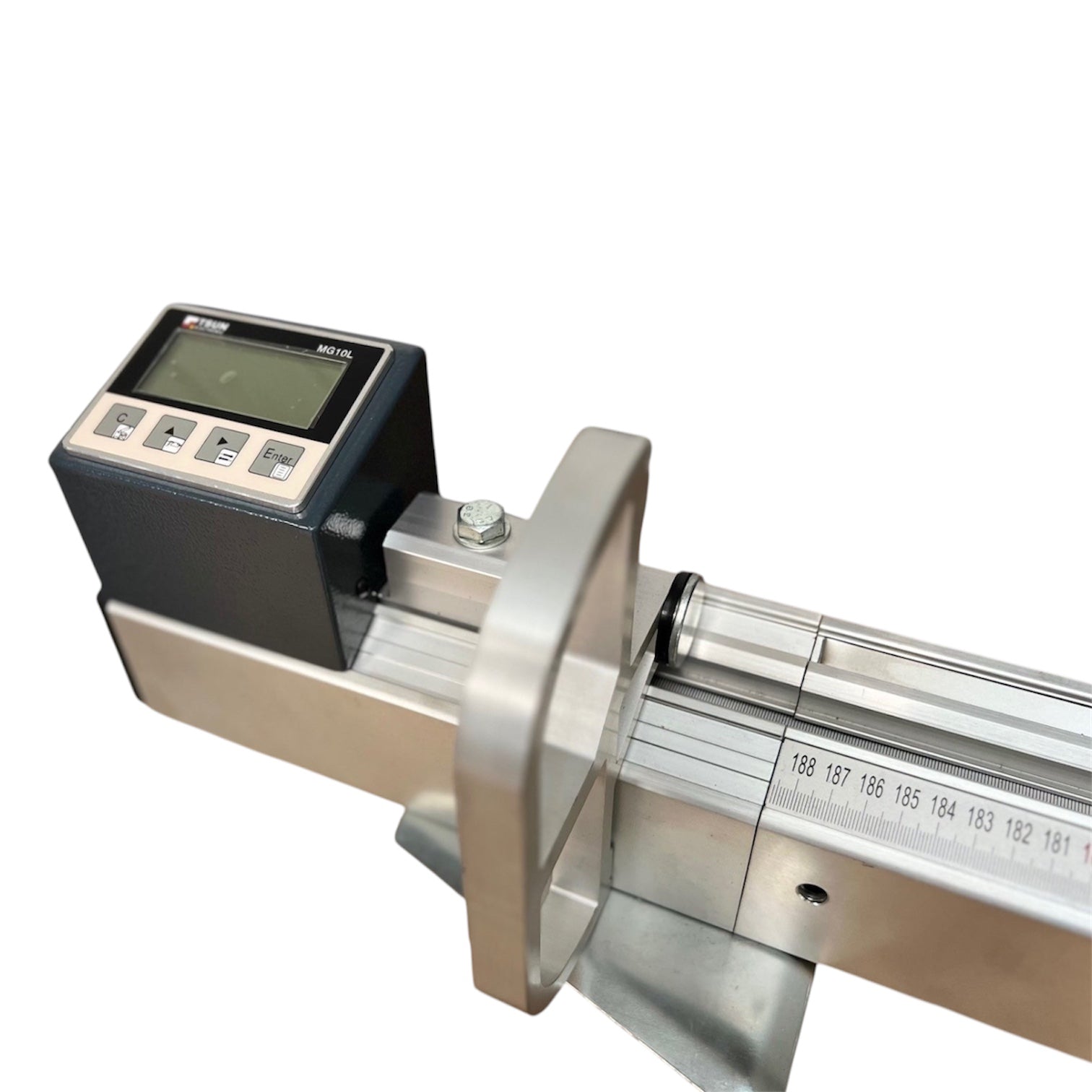

  • Triple Digital Crosscut Stops: Three crosscut stops with digital displays and two digital readouts for ultra-precise cutting.

  • Overhead Blade Guard: Integrated safety guard provides enhanced operator protection and clear visibility of the cutting area.

  • Robust Cast Iron Saw Unit: Reduces vibration and adds long-term durability and cutting stability.

  • Large Crosscut Fence: Heavy-duty, reversible fence stops ensure reliable and accurate crosscutting.

  • Dual Vertical Shaft Mounting: Guarantees smooth, consistent motion of the saw unit for precise blade travel.

  • Precision Sliding Table: Moves effortlessly along tempered, ground prismatic guides for accurate panel handling.

  • Three-Speed Blade Control: Easily switch between cutting speeds for different materials with a quick tension release mechanism.

Whether you're cutting bulk panels or detailed components, the Woodfast PS400C offers the perfect combination of power, precision, and smart control.

About Woodfast

Established with a commitment to manufacturing excellence, Woodfast combines decades of industrial experience with innovative design to deliver machinery that meets the evolving needs of woodworkers and furniture makers. Renowned for producing reliable, accurate, and user-friendly equipment, Woodfast continues to serve professionals across Australia and beyond with solutions that blend performance, quality, and smart engineering.

Additional Information

Model
Type
Panel Saw
SKU
8043423
Series
Diamond
Part Number
PS400C
Brand
Woodfast
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
7.5HP
Blade Type
Main Blade + Scoring Blade
Table Size
1020mm (690 + 720mm)
Technical - Saw
Sliding Table (Cross Cut) Size
3800 x 418mm
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
1250mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
350mm
Blade (Main) - Speed
3000RPM, 4000RPM, 5000RPM
Blade (Scoring) - Diameter (Max.)
120mm
Blade (Scoring) - Bore Size
20mm
Blade (Scoring) - Speed
8000RPM
Blade Tilt
0-45°
Dimensions
Product Weight (Net Weight)
760kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Push Stick Included
Blade - Automatic Scribe Rise and Lower
Blade - Electric Tilt
CNC Controlled Rip Fence
Digital Touch Screen Panel
Digital Readout on Rip Fence
Standard Inclusions
Angle Cutting Device + Digital Fence
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Workshop (Site) Info
Dust Hose Inlet Diameter
1 x 100mm, 1 x 80mm
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Weight (Gross)
800.48kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
2.35m x 2.2m x 1.25mH (1290Kg) MACHINE BODY
Carton 2 (L X W X H x KG)
3.45m x 0.54m x 0.34m (190Kg) SLIDING TABLE
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
